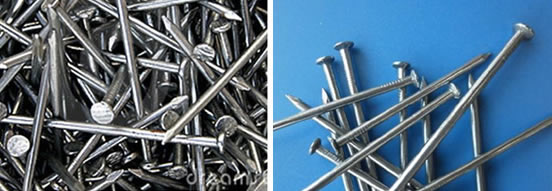

Export HDG Galvanized Construction Common Nails
Common Nail and fastening spikes are popularly used for scaffold and other wooden and concrete structure fastening and securing. Also used for ships and various cases. We supplies steel common nails with a variety of nail length, shanks and head types to meet specific fastening and finishing jobs. Major types include duplex, hardened steel and common round steel.
Steel nails for construction fastening are classified by lengths of 1 inch to 6 inches. Steel nails with a length of over 6 inch are also called fastening spikes.
Duplex Nails, Double Headed Scaffolding Nails:
Hard metal steel nails with double heads, also called Duplex Nails. Used to build scaffolding, scenery, and other temporary structures. This type of nail is driven to the first head and the second nail is used later to pull it out. Steel duplex nails are strong, not easy to rust, can be used without drilling hole in common wall construction.
Material: Q195, Q235
Shank diameter: 2.8mm-4.5mm
Length: 2"-4"
Finish: polished /bright mainly
Head: flat
Packing: 5kg per box, 1kg per box or bag, 500g per bag, 25kg per carton and as your request
Application:
Steel scaffolding duplex nails are mainly used in the connections of concrete wall, ground and surface materials and infrastructure fixed.
- Common iron nails, size 5"xbwg6 and 1 1/2"xbwg14, 10kg/carton
Common nail :size: 2.5, 3 and 4 inch,
Roofing nail: twist shank, size: 2.5inch
DETAIL SPECIFICATION OF NAILS HDG GALVANIZED
| L = |
length in millimeters |
| DB = |
Nail body diameter in millimeters |
| DH = |
Nail Head Diameter in millimeters |
| TH = |
Nail Head thickness in millimeters |
| # N Lb |
Units per pound |
| # N Kg |
Units per kg |
| COMMON NAIL WITH HEAD |
DIMENSIONS IN MILLIMETER |
|
|
| DESCRIPTIONS |
L |
DB |
DH |
TH |
# N Lb |
# N Kg |
| GALVANIZED NAIL CC 1 INCH |
25.40 |
1.70 |
3.70 |
0.97 |
789 |
1,739 |
| GALVANIZED NAIL CC 1 ½ INCHES |
38.10 |
2.05 |
5.56 |
1.03 |
392 |
864 |
| GALVANIZED NAIL CC 1 ¼ INCHES |
31.75 |
2.05 |
5.56 |
1.03 |
438 |
966 |
| GALVANIZED CC 2 INCHES |
50.08 |
2.87 |
6.76 |
1.32 |
153 |
337 |
| GLAVANIZED NAIL CC 2 ½ INCHES |
63.50 |
3.33 |
7.14 |
1.50 |
90 |
198 |
| GALVANIZED NAIL CC 3 INCHES |
76.20 |
3.77 |
7.92 |
1.50 |
57 |
126 |
| GALVANIZED NAIL CC 3 ½ INCHES |
88.90 |
4.12 |
8.74 |
1.50 |
43 |
95 |
| GALVANIZED NAIL CC 4 INCHES |
101.60 |
4.88 |
10.31 |
2.10 |
28 |
62 |
| GALVANIZED NAIL CC 5 INCHES |
127.00 |
5.65 |
11.92 |
2.50 |
17 |
37 |
| GALVANIZED NAIL CC 6 INCHES |
152.40 |
6.67 |
13.48 |
2.50 |
10 |
22 |
| COMMON NAIL HEADLESS |
| GALVANIZED NAIL SC 1 INCHES |
25.40 |
1.70 |
2.40 |
1.90 |
864 |
1,905 |
| GLAVANIZED SC 1 ½ INCHES |
38.10 |
2.05 |
3.00 |
2.00 |
397 |
875 |
| GALVANIZED NAIL SC 2 INCHES |
50.08 |
2.87 |
4.00 |
3.20 |
150 |
331 |
| GALVANIZED NAIL SC 2 ½ INCHES |
63.50 |
3.33 |
4.70 |
3.80 |
89 |
196 |
| GALVANIZED NAIL SC 3 INCHES |
76.20 |
3.77 |
5.70 |
4.20 |
61 |
134 |
| SPECIAL NAILS WITH HEAD |
| NAIL HDG BOX 3D |
31.75 |
1.93 |
5.56 |
0.99 |
434 |
957 |
| NAIL HDG BOX 4D |
38.10 |
2.03 |
5.56 |
1.00 |
391 |
862 |
| NAIL HDG BOX 6D |
50.08 |
2.51 |
6.75 |
1.03 |
197 |
434 |
| GALVANIZED NAIL CC 1 ½ X 15 |
38.10 |
1.85 |
5.00 |
1.00 |
462 |
1,019 |
| GALVANIZED NAIL CC 2 X 13 |
50.08 |
2.44 |
6.20 |
1.10 |
204 |
450 |
| GALVANIZED NAIL CC 1 ½ X 12 ¾ |
38.10 |
2.40 |
5.70 |
0.95 |
280 |
617 |
Collated nails
21 degree round head plastic strip nails 3" x .120
21 degree ring shank round head plastic strip nails 2 3/8" x .113
Galvanized concrete nails with below specification.
- hardness: hrc 40-62
- steel grade used including carbon content: 45# steel, 0.42-0.50% carbon content
- angle of cutting for toe: normal - 30 - 33 degree
- thickness of coating - 8 microns
- no.of groves: 10 groves
- head diameter: double of the shank diameter
- head thickness: 1.5 - 2mm
- bending angle: 90 degree
- shank : 4.2mm
|
