Aluminum grating is designed to be a high-strength, low-weight product that uses an I-bar or rectangular bearing bar with cross rods hydraulically swaged under high pressure. The metal aluminum grate makes a rigid, virtually maintenance-free flooring product.
Similar to steel grating, aluminum grating can be pressure locked as an alternative to swage locked. This application process also allows the customer to choose a close mesh grate where certain special needs are to be met.

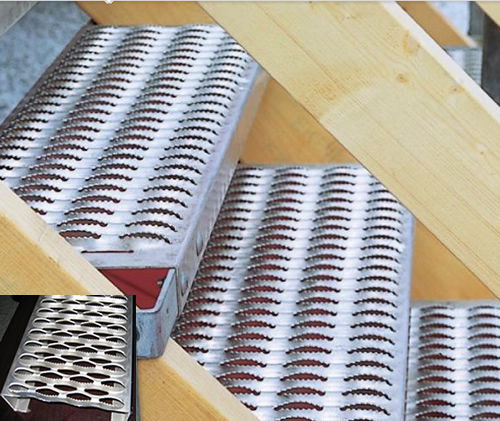

Grip-strut aluminum walkway grating:
Applications: Widely used in offices, industrial plants, production workshops, stairways, treads, up and down stairs, mechanical non-slip, interior, transport facilities and public places, in order to reduce the inconvenience of the road is wet and slippery, avoid fall accidents, to protect personal safety, improve efficiency, convenience for daily production.

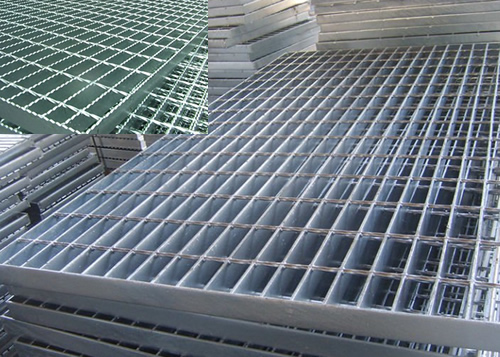

Aluminium Swaged Grating:
Steel grating standards: China: YB/T4001-1998, USA: ANSI/NAAMM (MBG531-88), UK: BS4592-1987,
Australia: AS1657-1985.
Material:Mild Steel (Low Carbon Steel) or Stainless Steel.
Surface Treatment: Untreated, Painting or Hot dip Galvanizing.
Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended.
America standard is available :1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.
Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
|
