Welded Steel Bar Grating is the most popular of all grating platform types due to its strength, cost-efficient production and ease of installation.
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
Standard grating panels are 3 ft. wide x either 20 ft. or 24 ft. long. Panels are painted black; one end is untrimmed.
There are three kinds of welded steel bar gratings: plain style grating, serrated steel grating and I bar steel grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We are professional factory to design and manufacture standard steel grating and customize according to client's requirements.
Material :Steel,Mild Steel (Low Carbon Steel) or Stainless Steel, fiberglass.
Surface Treatment: Untreated, Painting or Hot dip Galvanizing.
We Offer:
Aluminum Pressure-locked Grating.
Stainless steel welded platform bar steel grating.
Hot Dipped Galvanized Welded Steel Bar Grating.
Item |
Description |
Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

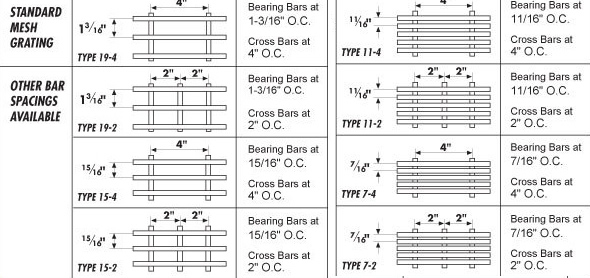

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
|
Surface Treatment |
Black, self colour, hot dip galvanized, painted, spray coating |
Grating Style |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan:JIS |
|
