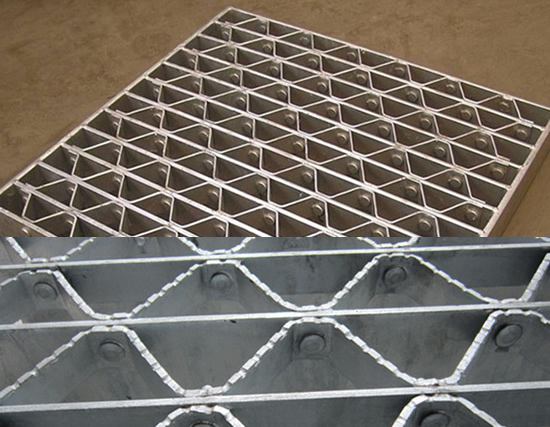

Riveted grating combines bearing bars and crimp bars by clamping them with a heavy-duty rivet - creating a high strength joint.
Riveted Grating is the oldest style of grating made today. It is the most rugged and reliable, as it is based on the truss principle, which provides excellent lateral stability and distribution of loads.
This kind of grating ensures easy working, walking and wheeling surfaces in all sorts of industrial applications. An ideal choice when heavy loads and vehicular traffic are involved.
Material: Riveted gratings are available in stainless steel, aluminum and carbon steels.
Surface Treatment: Untreated, Painting or Hot dip Galvanizing.
Type |
Welded steel grating, pressure-locked, socket-welding |
Steel flat size |
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm |
Beraing bar pitch |
12.5,15,20,25,30,35,40,50mm |
Cross bar pitch |
38,50,80,100mm |
material |
Low carbon steel, stainless steel, aluminium |
Surface treatment |
Untreated, hot galvanized, painted |
Standards |
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS 1657-1985 |
|
