Steel Bar Gratings are suitable for building materials applied for power stations, boiler, ship building, petrochemical, chemical and general industrial factory buildings and municipal construction. Also known as Welded Steel Bar Grating or Pressure Weld Steel Grating.
Platform Steel Grating Channels - Big Span Steel Grate Structure Panels
Platform Channel Gratings are made of aluminum or steel alloy bar structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.
Platform Steel Bar Grating are new building materials used in construction of power plants, boilers, ship buildings for platform decking structure. The steel bar grating platform structures enjoy good air and light ventilation, non-slip property, good bearing capacity, easy cleaning and installation.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Plain Flat Welded Bar Type Steel Grating
Steel Bar Grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.
Comprehensive type and broadest range in dimension.
Material Q235 , or other equivalent material
Grating Conformity Standard: YB/T4001, ANSI/NAAMM-MBG531, BS4592, AS1657, JS3101
Grating Dimension.
Load Bearing Flat Bar size
Thickness≥3mm, depth ≥19mm
19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5, 40X6, 40X8, 40X10,90X6.
Pitch of Load bearding flat bars(mm):
12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80……
Pitch of cross bars(mm):The sizes and dimension is not limited to above.

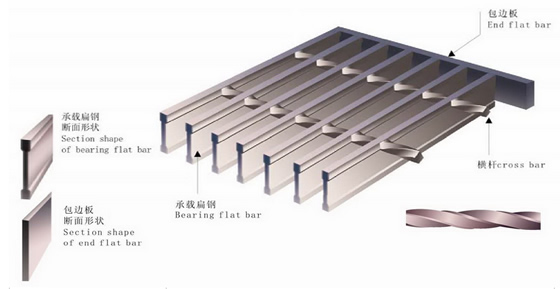

Grating type: Bearing bar: Plain type, Plain I type, Serrated type, Serrated I type;
Cross bar: Round cross bar, Square twisted cross bar.
Type |
Plain / Smooth, Serrated /teeth, I bar, serrated-I bar |
Steel flat size |
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc. |
Bearing bar pitch |
12.5,15,20,25,30,35,40,50mm |
Cross bar pitch |
38,50,80,100mm |
material |
Low carbon steel, stainless steel, aluminum alloy |
Surface treatment |
Untreated, hot galvanized, painting,electro galvanized |
Grating Standard |
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS 4592-1987
Australia: AS 1657-1985 |
Material standard |
China: GB 700-88
UK: BS 4360:1990
USA: ASTM A36/A36M-96
AUSTRALIA: AS 3679 |
HDG standard |
CHINA: GB/T13912-2002
UK: BS729
USA: ASTM A123/A123M-97a
AUSTRALIA: AS 1650 |
Anti-Slippery Serrated Surface Steel Bar Grating
Bearing bar pitch:30,40,60mm.
Cross bar pitch;50,100mm.
Plain,Serrated,I-shape.
Hot-dipped galvanized,Painted,Untrea.
We produce kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements. |
