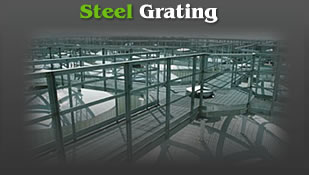

Galvanized Welded Steel Bar Grating

For Platform Channel Gratings uses. Bar type structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.
Popular Sizes as below:
Load Bearing Flat Bar size
Thickness≥3mm, depth ≥19mm
19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5, 40X6, 40X8, 40X10,90X6.
Pitch of Load bearding flat bars(mm):
12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80……
Pitch of cross bars(mm):The sizes and dimension is not limited to above.
Grating type: Bearing bar: Plain type, Plain I type, Serrated type, Serrated I type;
Cross bar: Round cross bar, Square twisted cross bar.

Heavy Duty Steel Grating Panels:

Heavy Duty Grating is a pultruded bar type grating that can be designed and used like traditional metal grates. The solid individual bearing bars are designed to take heavy wheel traffic such as fork lifts, tow motors and truck traffic. Heavy duty grating is constructed of the same type composite used in the other products.

Hot Dipped and Electro Galvanized Steel Welded Mesh Panels for Grating and Construction Reinforcing

Galvanized Steel Welded Mesh Panel is a flat sheet welded structure made of superior quality steel wire or steel bar. It has flat even surface and firm structure. Varieties according to uses: Fencing Panels, Steel Grating Panels, Welded Mesh Panels for Construction and other uses. Minting supplies square mesh grating and rectangular mesh welded bar grating panels used as reinforcing mesh in construction.

Bright Hot Dipped Galvanized Expanded Metal Grating for Building Uses

As metal flooring or decking for walkway, tread plates, stair protection of buildings:
Walkways
Stairways
Catwalks
Platforms

Expanded steel grating is identified by weight per square foot. Carbon Steel Expanded steel grating is available in 3, 3.14, 4, 4.27, 5, 6.25 and 7 pounds per square foot.

Aluminum Checkered Plate Stair Treads

Checkered plate non-skid stair treads are used secure the outdoor walkway or flooring for a more sturdy stepping surface.

Materials: Aluminum or galvanized carbon steel, checkered or embossed sheets
Sizes: We can supply full range of stair tread with various sizes. Custom order can be discussed.

Aluminum Plank Bar Grating Floor:

Features:

1. Not suitable for wheel traffic
2. High strength to weight ratio
3. Relatively maintenance free
4. Nonskid surface
5. Corrosion resistant
6. Nonmagnetic; non-sparking
7. Attractive appearance
